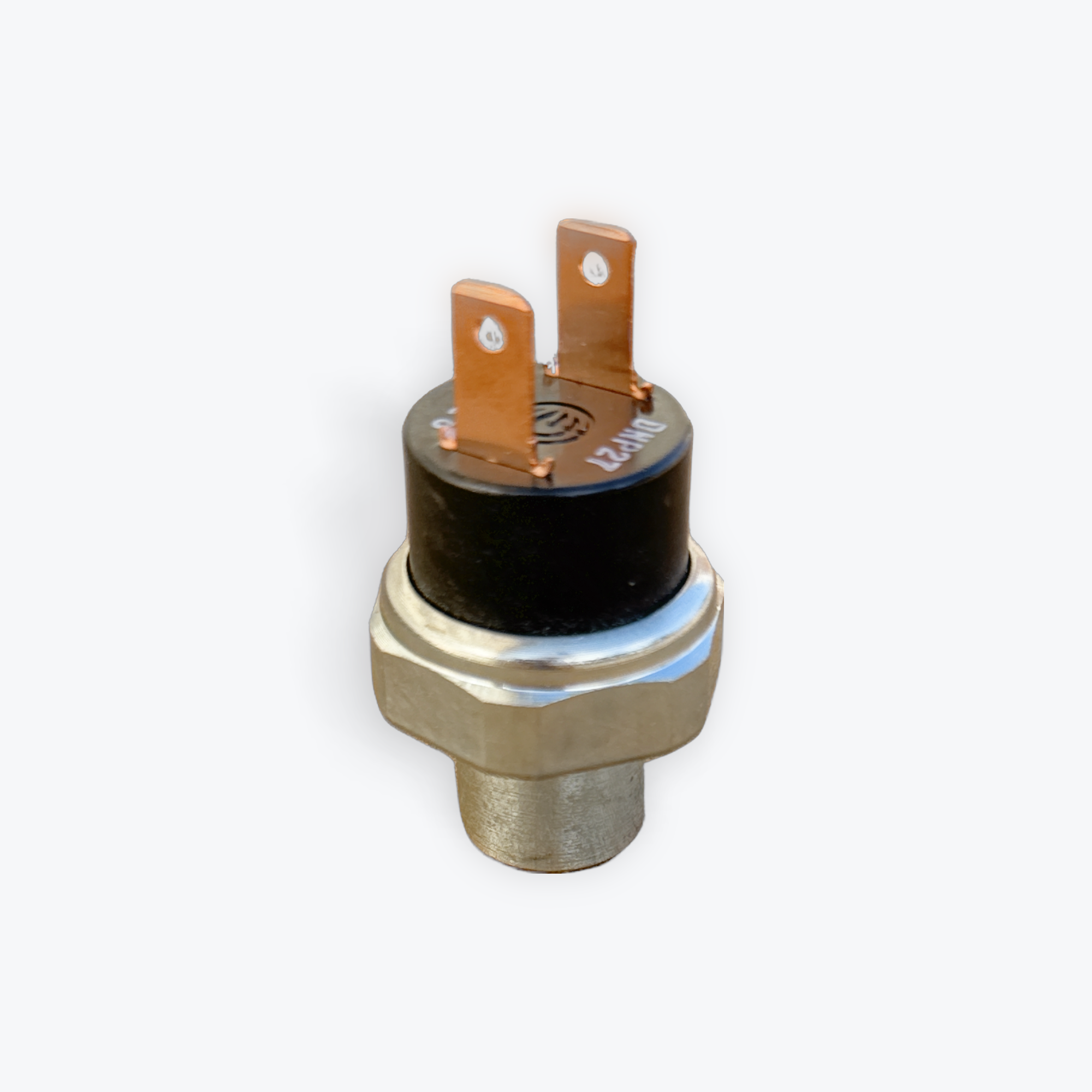

71R7075 Binary Pressure Switch | High & Low Pressure Protection | 7/16-20 Female

The 71R7075 Binary Pressure Switch is designed to provide dependable high and low pressure protection for air conditioning systems. It automatically interrupts power to the compressor clutch whenever refrigerant pressure falls below or rises above safe operating limits, helping protect the compressor from costly damage and extending system life.

Built for reliable performance in demanding applications, this switch is ideal for OEM replacement and heavy-duty A/C systems.

FITS ASV 135 & BARKO 930 930B 937

Features

• Protects against both high and low refrigerant pressure
• Automatically disengages compressor clutch during unsafe pressure conditions
• Helps prevent compressor damage and extend A/C system life
• Durable design for heavy-duty applications
• Direct replacement for multiple OEM part numbers

Specifications

• Part Number: 71R7075
• Product Type: Binary Pressure Switch
• Thread Size: 7/16-20 Female
• Functions: High Pressure Protection & Low Pressure Protection
• Terminals: 2
• Connector: .250″ Male Spade
• Mating Connector: 71R4571
• Compatible Series: R-9720, R-9730, R-9757

Interchange Part Numbers

10001460, 1-9227, 11-0616, 1512, 1514330C2, 1911505514, 207646, 22-36474, 2212001, 232-8542, 3093419, 3282695, 35761, 3596054, 36646, 404428, 405111, 4379-RD584330P, 5930-01-531-3056, 650869, 850-8903, 922-1020, 925725, A22-36474, ABP N83 318109, ABP N83 318229, BB14550, E-807200, F123828, FJK SP4071, RD-5-8433-0P, RDHRD584330P, RDT71R7075, ZGG14870, ZGG19227, ZGG711008.
